RF Coaxial Connector 2.92mm female Flange Mount

Product Categories
Terui International Group Co.,Ltd.
Contact Now

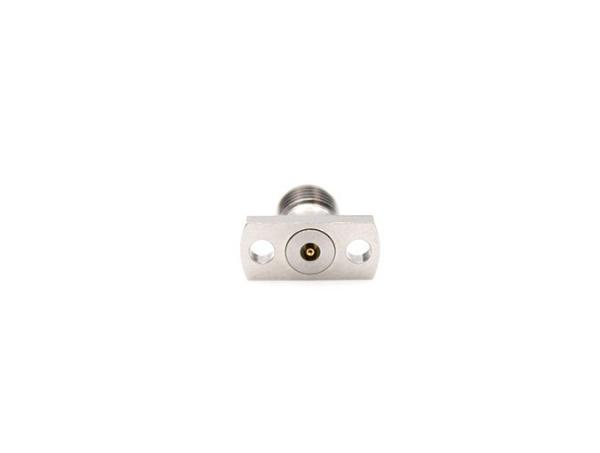

RF Coaxial Connector 2.92mm female Flange Mount

  • 1
  • 2
  • 3

Brand Name : Terui

Model Number : 2.92-KFD0.3AG

Certification : RoHS

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000000pcs per month

Delivery Time : 3-10 working days

Packaging Details : Standard export packaging

Contact Now

RF Coaxial Connector 2.92mm female Flange Mount

2.92mm Precision Microwave Connectors Panel Mount also named K connector, developed from series SMA connector.
2.92mm Precision Microwave Connectors Panel Mount has the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.

Product Details

RF Coaxial Connector 2.92mm female Flange Mount

Teruilai P/N: 2.92-KFD0.3AG

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-40GHZ
Dieletric withstanding voltage ≧750V
Characteristic impedance 50Ω
Insulation Resistance ≧3000MΩ
VSWR ≦1.25:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -55℃ to +165℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel Passivated
Pin contacts Beryllium-Copper Gold
Insulators PEI
